On-screen Controls

Configure the native on-screen touch controls for your scene.

On the mobile client, players interact with your scene through a set of native on-screen controls — a virtual joystick, a crosshair, and a gamepad of buttons. The TouchScreenControls component lets your scene reshape that HUD: declutter it, hide the joystick or crosshair, change what the large central button does, swap a button's glyph for your own icon, or hide buttons entirely and replace them with your own UI.

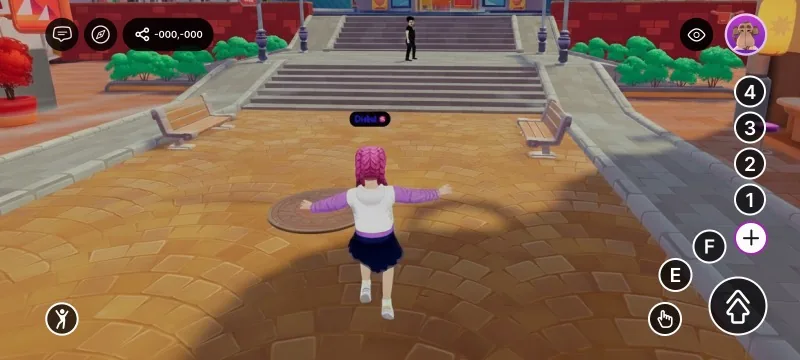

The default mobile HUD: virtual joystick on the left, gamepad buttons on the right — The default on-screen controls, before any customization

The component is applied automatically while the player is inside your scene and reverts to the defaults (nothing hidden, jump as the central button) the moment they leave — so scenes that don't use it are unaffected. It only affects platforms with native on-screen controls: it's a no-op on desktop and has no effect in VR.

How the button layout works

The gamepad buttons form a single priority stack. The order is fixed:

IA_JUMP
IA_POINTER
IA_PRIMARY (E)
IA_SECONDARY (F)
IA_ACTION_3 (1)
IA_ACTION_4 (2)
IA_ACTION_5 (3)
IA_ACTION_6 (4)

The on-screen positions are fixed too. The visible buttons fill those positions from the top of the stack down — so what you change is which buttons are visible and which one leads, not their order.

When you…	The controls…
Hide a button (any button, including jump)	Every lower-priority button moves up to fill the gap. Hide jump and `IA_POINTER` takes the central spot.
Leave the stack alone	The first button (`IA_JUMP`) is the large central button; the next buttons fill the surrounding slots.
Set a main button with `mainAction`	That action jumps to the front and becomes the central button; every other button keeps its normal order.
Set a main button that is also hidden	Hiding wins — the button stays hidden.
Leave 5 or fewer buttons visible	All of them show directly (the central button plus up to four around it); there is no "+" menu.
Leave more than 5 buttons visible	The "+" takes the last slot, so four show directly (the central button plus three) and the rest sit behind the "+" overflow toggle.

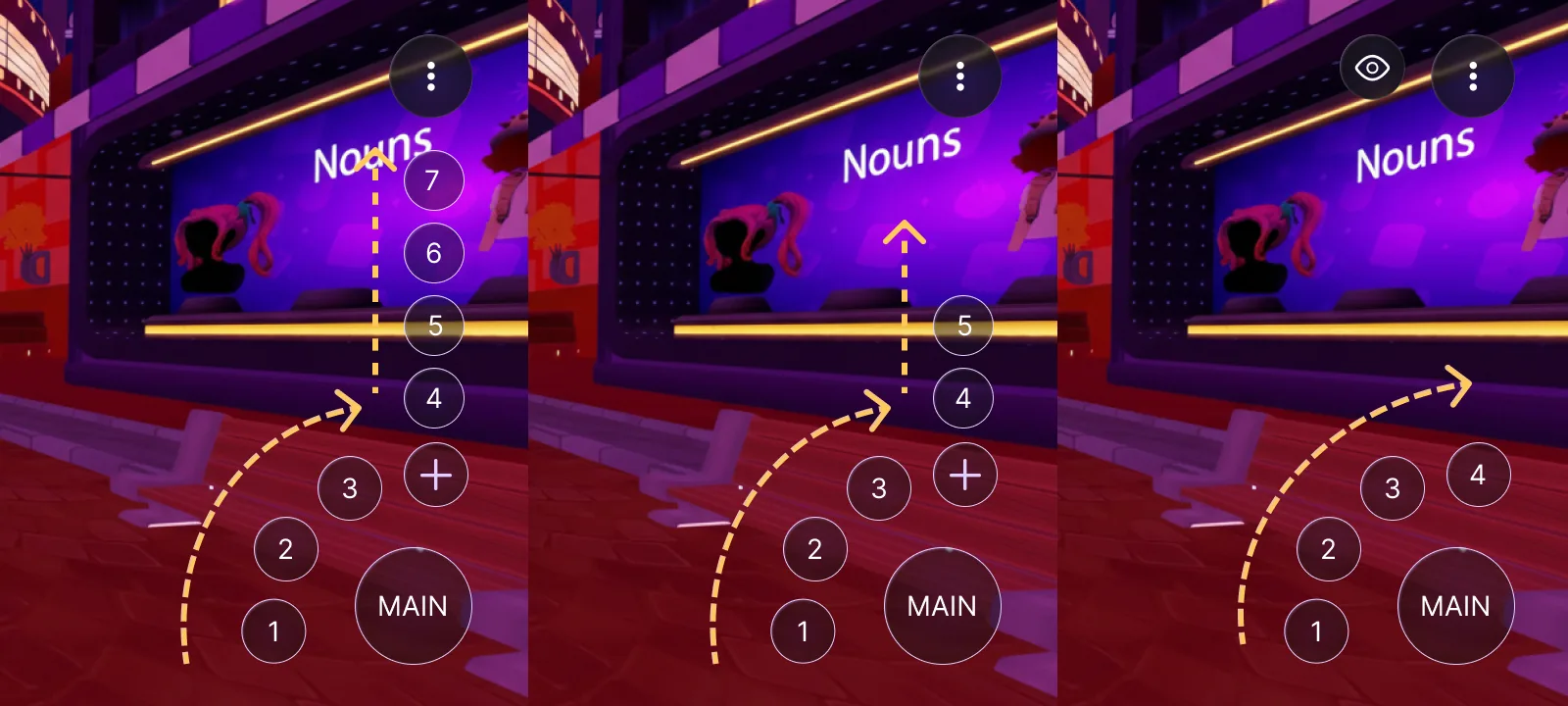

Three HUDs showing the gamepad reflowing as the number of visible buttons changes — How the buttons reflow with the visible count. **Left (7 buttons):** the main button, an arc of 1–3, and the "+" holding the overflow (4–7) in a column that climbs upward. **Center (5 buttons):** the same arc, with a shorter overflow column (4–5) behind the "+". **Right (4 buttons):** all four show directly and the "+" disappears.

This is also how you surface the 1/2/3/4 buttons, which are otherwise tucked behind the "+": hide enough higher-priority buttons to bring the visible count to five or fewer, and they show directly.

Common tasks

TouchScreenControls ships a set of convenience helpers. Each one writes the component onto the scene's RootEntity (where the client reads it) and merges with the current value, so you can call them from anywhere.

Change the main button — make the large central button trigger a different action:

import { TouchScreenControls, InputAction } from '@dcl/sdk/ecs'

export function main() {
    TouchScreenControls.setMainAction(InputAction.IA_PRIMARY)
}

Hide the joystick or crosshair — remove the movement stick and/or the aiming reticle, and bring them back with their show counterparts:

TouchScreenControls.hideJoystick()
TouchScreenControls.hideCrosshair()

// and to bring them back:
TouchScreenControls.showJoystick()
TouchScreenControls.showCrosshair()

Hide specific buttons — pass the actions you want gone (the rest cascade up):

TouchScreenControls.hide([InputAction.IA_SECONDARY, InputAction.IA_JUMP])

Hide or show every button — clear the HUD, or reset it:

TouchScreenControls.hideAll()
TouchScreenControls.showAll()

showAll() only affects the gamepad buttons — it doesn't restore a hidden joystick or crosshair. Use showJoystick() / showCrosshair() for those.

Replace a button's icon — for full control (custom icons, several changes at once), write the raw component on engine.RootEntity:

import { engine, TouchScreenControls, InputAction } from '@dcl/sdk/ecs'

export function main() {
    TouchScreenControls.createOrReplace(engine.RootEntity, {
        hideCrosshair: true,
        mainAction: InputAction.IA_PRIMARY,
        touchInputs: [
            {
                inputAction: InputAction.IA_PRIMARY,
                icon: { tex: { $case: 'texture', texture: { src: 'images/grab.png' } } },
            },
        ],
    })
}

The helpers at a glance:

Helper	What it does
`setMainAction(action)`	Sets which action the large central button triggers.
`hideJoystick()`	Hides the native virtual joystick.
`showJoystick()`	Shows the native virtual joystick again.
`hideCrosshair()`	Hides the on-screen crosshair / reticle.
`showCrosshair()`	Shows the on-screen crosshair / reticle again.
`hide(actions)`	Hides the given gamepad buttons (merged into the current config).
`hideAll()`	Hides every gamepad button.
`showAll()`	Shows every gamepad button (clears the button hide list). Does not affect the joystick/crosshair.

Properties

Write these directly when you use createOrReplace:

Property	Type	Description
`hideJoystick`	boolean	Hides the native virtual movement joystick.
`hideCrosshair`	boolean	Hides the on-screen crosshair / reticle.
`mainAction`	InputAction	Moves this action to the front of the stack, making it the large central button; the other buttons keep their order. Only gamepad actions are valid (see below). When unset, the first visible button (`IA_JUMP` by default) leads. See How the button layout works.
`touchInputs`	array	Per-button overrides. A button that isn't listed keeps its default (shown, with its default glyph).

Each touchInputs entry has:

Field	Type	Description
`inputAction`	InputAction	Which on-screen button this entry configures.
`hide`	boolean	Hides this button. Default is `false` (shown). Any button can be hidden, including `IA_JUMP` — the rest cascade up to fill its place.
`icon`	TextureUnion (optional)	Overrides the button glyph with a scene image. Use the `texture` variant with a content-mapped `src` (an image included in your scene) — `{ tex: { $case: 'texture', texture: { src: 'images/grab.png' } } }`. Only scene-content paths are supported (not external URLs, avatar or video textures). For the jump button this replaces all of its dynamic states (jump / double-jump / glide). If the path can't be resolved, the built-in glyph is used.

Which actions map to which buttons

The InputAction values here are the same ones used across Input on mobile and Click events. These are the actions that map to on-screen buttons:

InputAction	On-screen button
`IA_JUMP`	The large central button (default)
`IA_POINTER`	The interaction button
`IA_PRIMARY`	The E button
`IA_SECONDARY`	The F button
`IA_ACTION_3` / `IA_ACTION_4` / `IA_ACTION_5` / `IA_ACTION_6`	The 1 / 2 / 3 / 4 buttons

IA_ANY and IA_MODIFIER are meta values — they don't map to a button and can't be used here.

Example

To hide the joystick, tuck away the numbered buttons, and give the central jump button a custom icon shipped in your scene:

import { engine, TouchScreenControls, InputAction } from '@dcl/sdk/ecs'

export function main() {
    TouchScreenControls.createOrReplace(engine.RootEntity, {
        hideJoystick: true,
        touchInputs: [
            { inputAction: InputAction.IA_ACTION_3, hide: true },
            { inputAction: InputAction.IA_ACTION_4, hide: true },
            { inputAction: InputAction.IA_ACTION_5, hide: true },
            { inputAction: InputAction.IA_ACTION_6, hide: true },
            {
                inputAction: InputAction.IA_JUMP,
                icon: { tex: { $case: 'texture', texture: { src: 'images/banana.png' } } },
            },
        ],
    })
}

A mobile HUD with the joystick hidden and the central jump button showing a custom banana icon — The result: joystick gone, numbered buttons hidden (so the "+" disappears), and the jump button re-iconed

To replace the native controls entirely, hide them here and build your own touch buttons with UI Input Binding.
